Two-in-one Water Tank (DHW Tank +Buffer Tank)

Various Capacity, DHW tank and Buffer Tank integrated, Superior Durability

NEWNTIDE also provides the two-in-one water tank that combines DHW tank and buffer tank into a streamlined system, which eliminates the need for separate installations, significantly reducing the space required and simplifying the overall setup process.

Features:

  • DHW tank and buffer tank in one unit, saving space
  • Three tank sizes are available, offering multiple capacity options
  • Corrugated coil heat exchangers, larger heat exchange area
  • Optional solar coils available for solar panels integration
  • Optional 2kW / 3kW electric heaters available
  • Stainless steel liner, fittings, and coils, durable and reliable

Detailed Features

1. Internal Structure

2. Space Saving

Thanks to its vertical integrated design, the Gemini Series combi water tank integrates a domestic hot water tank and a buffer tank into a single water tank, and saves half of the occupied floor area, making it flexible to be installed in a narrow place. Moreover, it increases the convenience of water pipe installation and improves installation efficiency.

3. Compatible with Air Source Heat Pump

The two-in-one water tank can be precisely matched with the heat pump to provide space heating, cooling, and whole-house domestic hot water solutions.

4. Various Tank Volumes

There are various volumes for the buffer tank and storage tank. So it is flexible for users to choose different tanks according to the size of the house, heating needs, and water usage needs.

5. Installation Sketch Map

Download

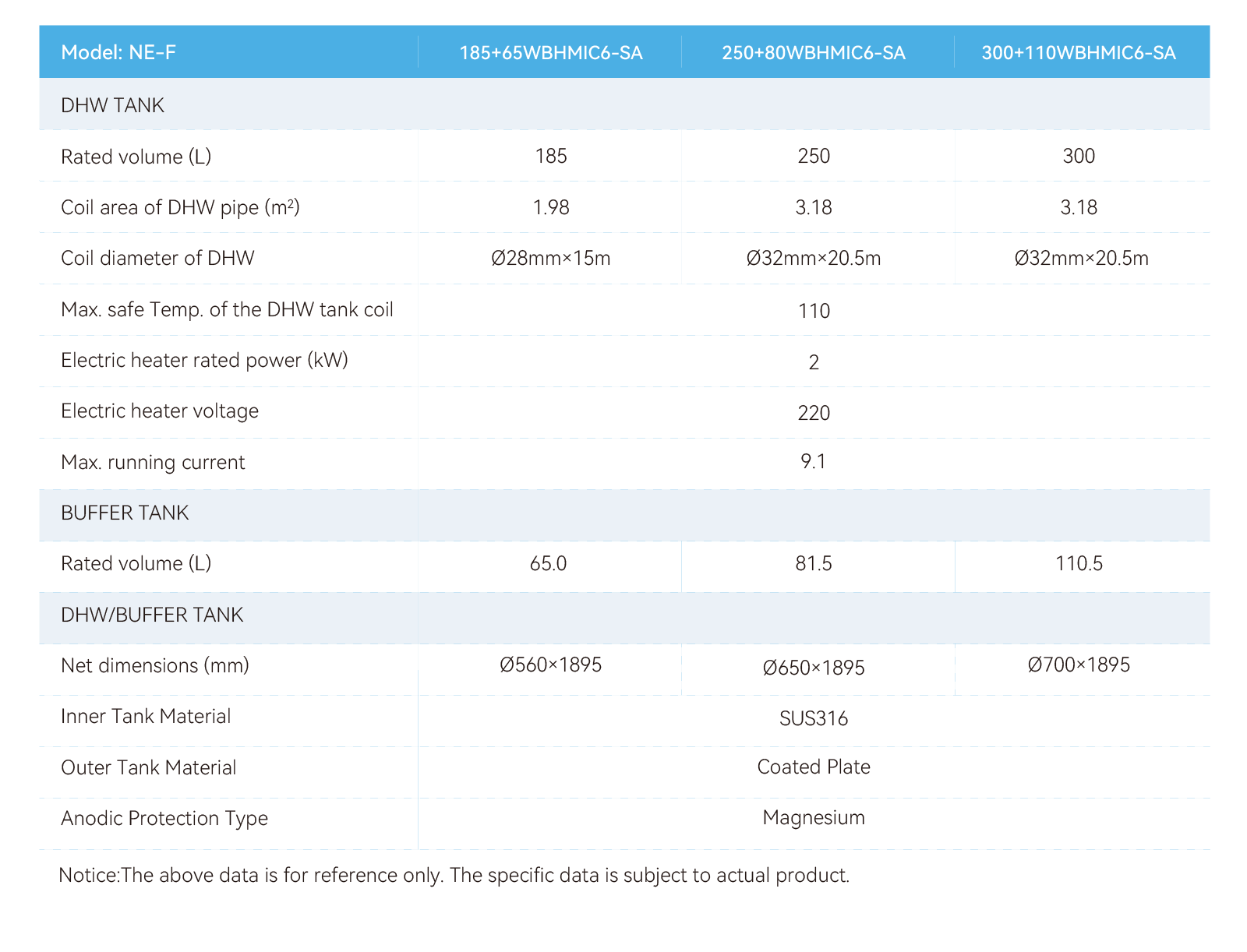

Parameters

Download
